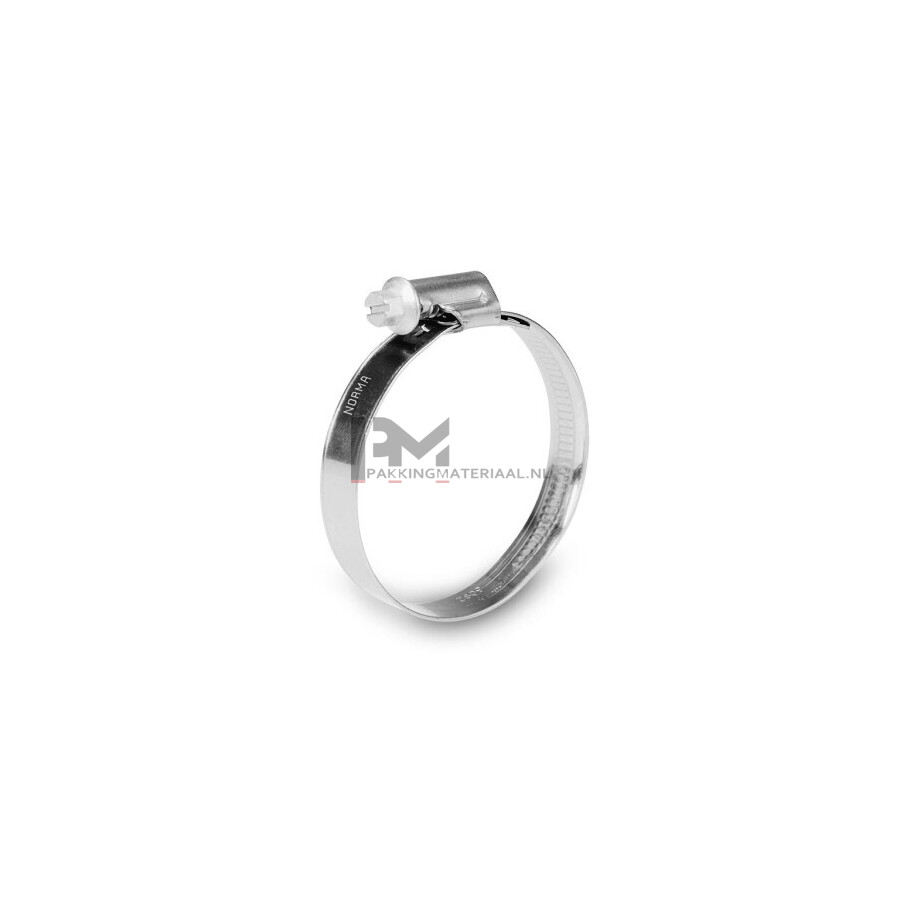

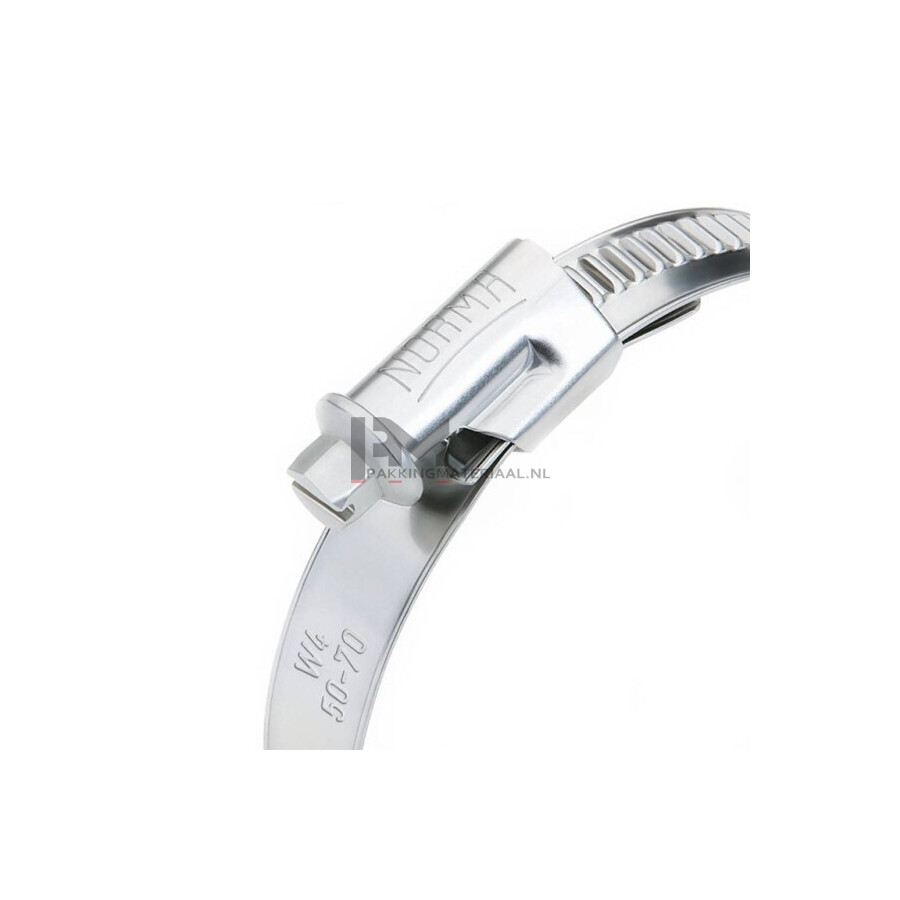

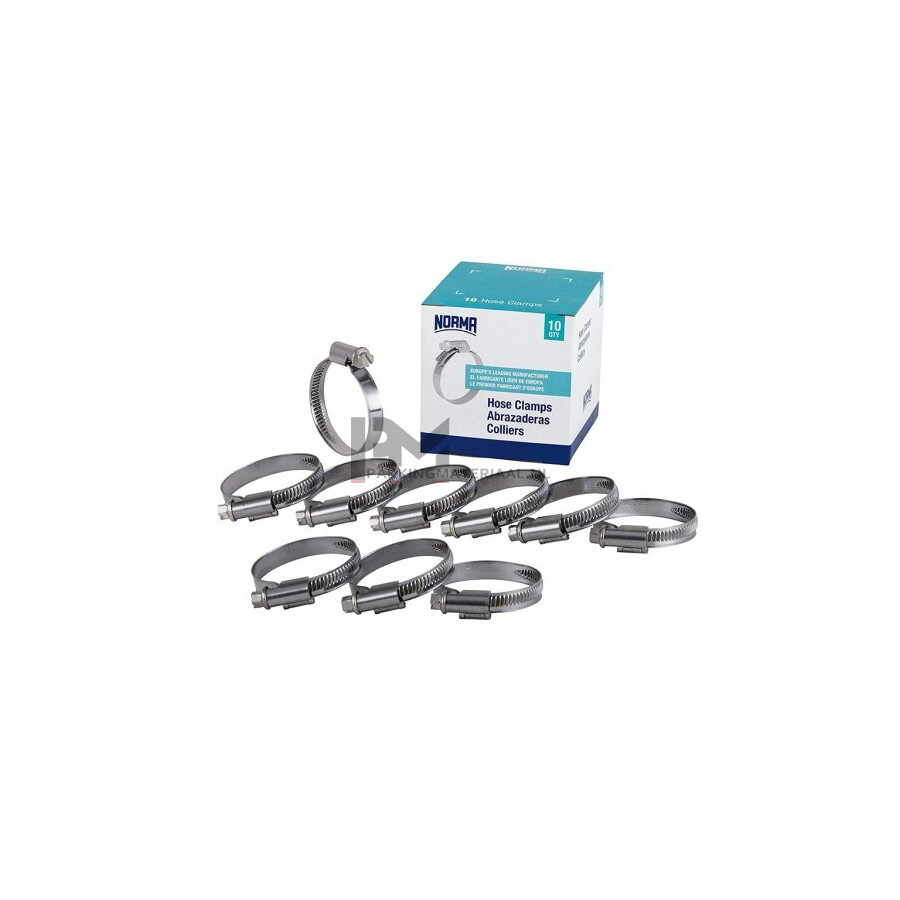

Hose clamps / Worm-Drive Clips (W4), width 9 mm, 80-100 mm, DIN 3017 (5 pcs)
Description
Hose clamps / Worm-Drive Clips (W4), width 9 mm, 80-100 mm, DIN 3017 (5 pcs)
NORMACLAMP® TORRO® multi-range hose clamps are ideally suited to applications with high mechanical loads. Thanks to the continuous developments these products have undergone, they remain the benchmark within modern clamp construction. The key feature of a NORMACLAMP® TORRO® product is its asymmetrical construction - an instant sign that it is a genuine TORRO®. Asymmetric housing provides high clamping force and superior torque strength. Even distribution of clamping pressure. Clamp aligns perfectly on the hose and ensures the optimal sealing of the connection.
Applications:
• Joining cooling water lines
• Depressurized and pressurized fuel lines and ventilation systems
• Oil lines
• Joining lines in sanitary applications
• Joining lines in machine building applications
• Lines in the household appliance industry
• Hose lines in the commercial vehicle industries
NORMACLAMP® TORRO® multi-range hose clamps are ideally suited to applications with high mechanical loads. Thanks to the continuous developments these products have undergone, they remain the benchmark within modern clamp construction. The key feature of a NORMACLAMP® TORRO® product is its asymmetrical construction - an instant sign that it is a genuine TORRO®. Asymmetric housing provides high clamping force and superior torque strength. Even distribution of clamping pressure. Clamp aligns perfectly on the hose and ensures the optimal sealing of the connection.
Applications:
• Joining cooling water lines
• Depressurized and pressurized fuel lines and ventilation systems
• Oil lines
• Joining lines in sanitary applications
• Joining lines in machine building applications
• Lines in the household appliance industry
• Hose lines in the commercial vehicle industries
Specifications
| Bandwidth | 9 mm |
| Clamping range | 80-100 mm |
| Types of clamp band | Stamped band |
| Type of screw | Slotted head screw |
| Quality | W4 |

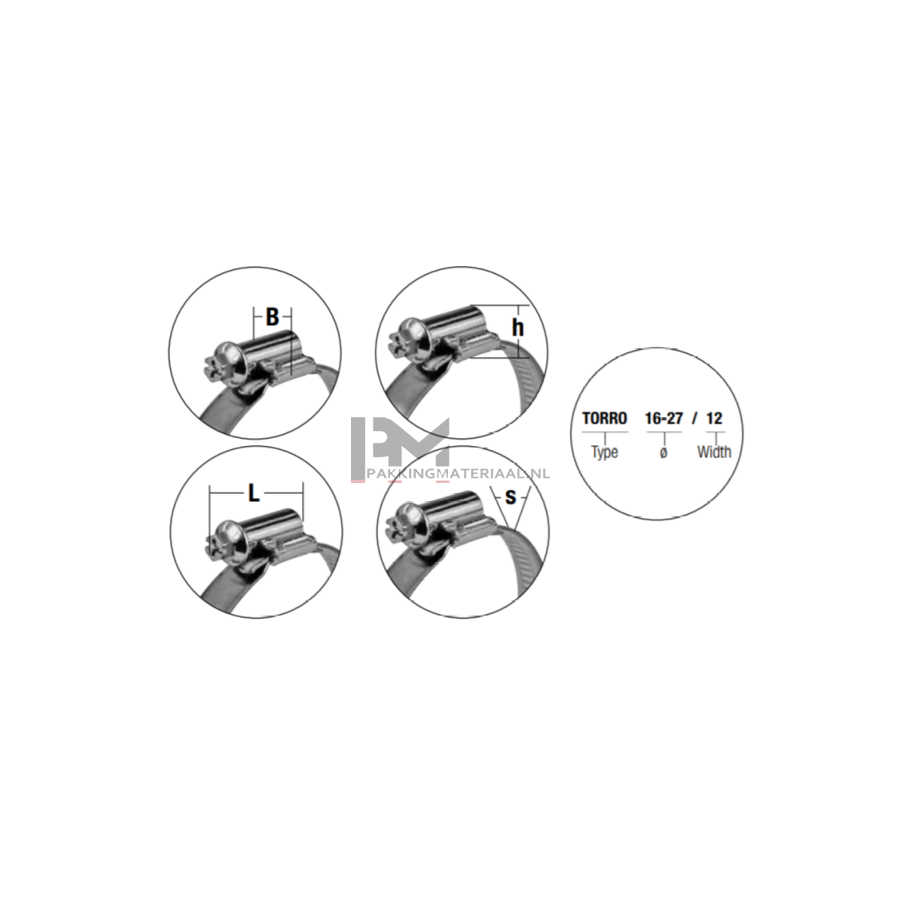

| Overall width (B) | 13 mm |
| Overall height (h) | 11 mm |
| Overall length (L) | 26 mm |
| Band thickness (s) | 0.65 mm |
